Camera-Mounting-adapter with Base station to EFP FIber system,Lemo/Neutrik Power supply

Name: CameraMountingadapter with Base station to EFP FIber systemLemoNeutrik Power supply
Brand: BEYOND
Price: 1 USD

Brand Name : BEYOND

Model Number : BY-EFP4106P

Certification : CE FCC ROSH

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T,Paypal

Supply Ability : 300 sets per month

Delivery Time : 15-20 working days

Packaging Details : Perfertly packing,1 set in a paper box

Adapter : V-lock/Gold mounting adapter

Base Station : 1U 19 inch Rack chassis

Video input : 4K/3G/HD-SDI input

Return video : CVBS or 4K/3G/HD/SD-SDI

Tally : Both wet and dry contact

Intercom : 5-pin Female connector,banlanced audio or Party-line audio

Genlock : CVBS signal

Timecode : CVBS video signal

weight : 6.5KG

Fiber : LEMO or Neutrik or Dual LC/FC/ST

Power supply : 48 VOLTAGE From bast station to camera and adapter

Contact Now

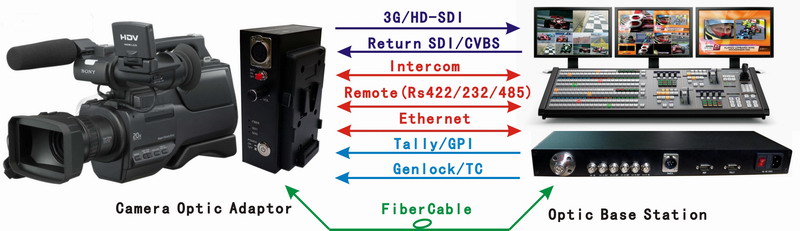

EFP To Fiber Converter includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI or CVBS), Remote control data, genlock, intercom, tally, audio and 10/100M Ethernet are also provided. The system puts all of the signals needed for multi-camera 3G/HD-SDI production onto a SM / MM tactical or SMPTE hybrid fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.

Camera-Mounting-adapter with Base station to EFP FIber system,Lemo/Neutrik Power supply

Features

Handle all Pathological patterns
Automatic cable equalization to ensure signal integrity
3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
10+Km on single mode fiber or 300m on multimode fiber transmission
Mic inputs with mute and pre-amps ,With amplifier for phones
RS422 /RS232/RS485 remote control
Tally/GPI output +12V or dry Contact Closure optional
V-mount or A-mount battery optional

Specifications:

General index

Work Temp	-25°C to 55°C
Storage Temp	-40°C to 85°C
humidity	0 ~ 95% (non-condensing)
Camera Optic Adaptor
Input power	DC 12~19V
Power consumption	10W
Net weight	1kg
Appearance size	160mm100mm44mm(without V-mount / A-mount)
Optic Base Station
Input power	AC90~240V
Power consumption	10W
Net weight	3kg
Appearance size	19” 1U standard rack mount

Optical:

Wavelength	1310nm / 1550nm / CWDM
Output Power	-6~-1dBm
Rx sensitivity	<-18dBm
Transmission Distance	SM fiber 10+km , MM fiber 300m
Optical connector	Dul LC /FC/ST/SC/MX/ Lemo / Neutrik (optional)

SDI input/output:

Signal format	SMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate	270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization	Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface	BNC 75 Ohm

Intercom:

Camera Optic Adaptor
Interface	4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack
Microphone	Mic inputs with mute and pre-amps
Headphone	with volume up or down
Optic Base Station
Interface	Input:3pin XLR Female , Output: 3pin XLR Male or 5pin XLR or 3.5mm headset jack
Audio	Balance or unbalance line level

Tally:

Camera Optic Adaptor
Interface	4pin air head or 3pin mini XLR
Output	Dry Contact Closure or wet +12V
	On: short or +12V Off: open or 0V
Optic Base Station
Interface	DB9(Male)
Input	Dry Contact Closure or wet
	On: short to GND or TTL low Off: open or TTL high

Remote:

Camera Optic Adaptor
Interface	8pin air head or 8pin sony’s remote interface
Data	RS422 /RS232/RS485
Optic Base Station
Interface	DB9(Male) or 8pin sony’s remote interface
Data	RS422 /RS232/RS485

Ethernet:

Work mode	Full duplex/half duplex
Data Rate	10/100Mbps(AUTO)
connection terminal	RJ45

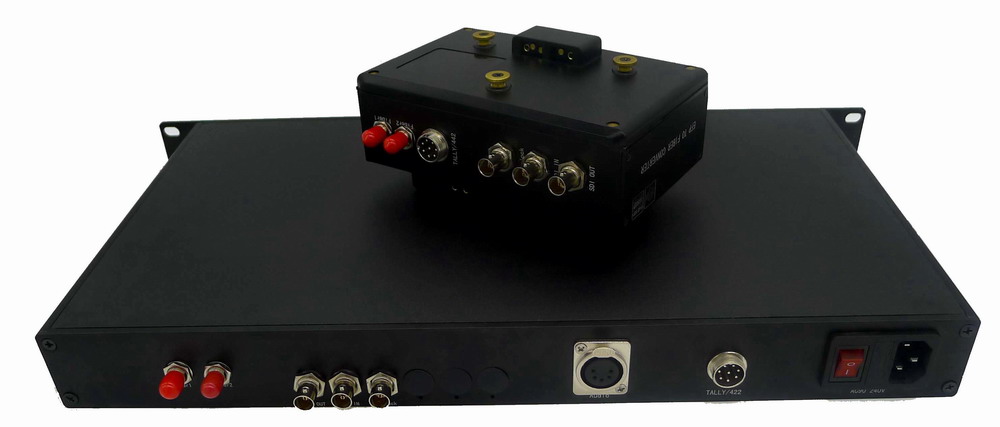

EFP To Fiber Customization examples

Camera-Mounting-adapter with Base station to EFP FIber system,Lemo/Neutrik Power supply

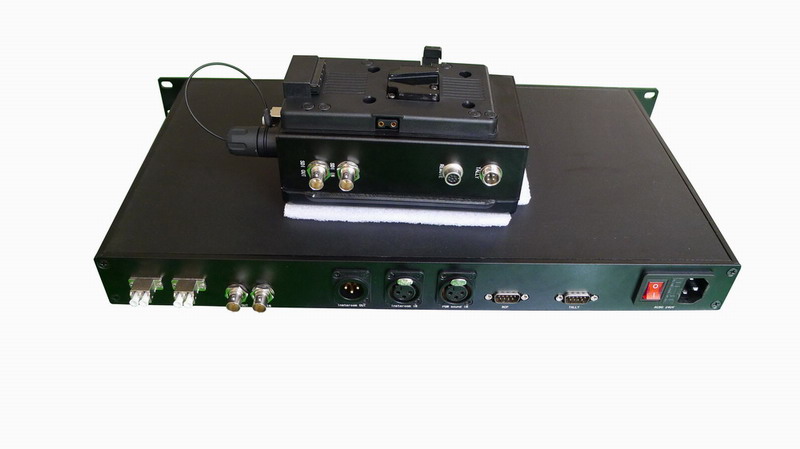

EFP To Fiber Converter Customization examples

Camera-Mounting-adapter with Base station to EFP FIber system,Lemo/Neutrik Power supply

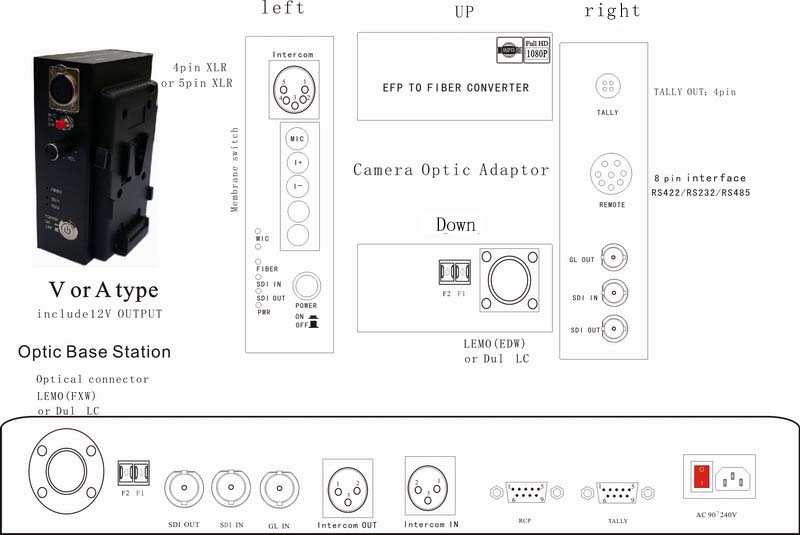

Panel diagram:

Camera-Mounting-adapter with Base station to EFP FIber system,Lemo/Neutrik Power supply

Camera-Mounting-adapter with Base station to EFP FIber system,Lemo/Neutrik Power supply Images
